In an era where sustainability is no longer optional but essential, molded pulp has emerged as a leading eco-friendly packaging solution. In this article, we’ll explore what molded pulp is, how it’s manufactured, the different types available, and the pros and cons that come with using it.

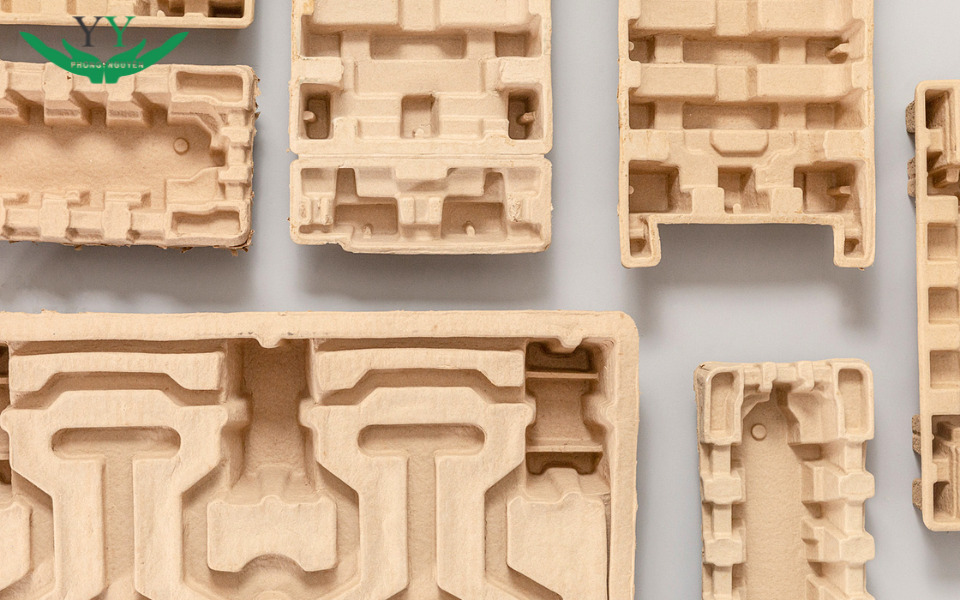

What is molded pulp?
Molded pulp, also known as molded fiber, is a sustainable packaging material made primarily from recycled paper, cardboard, or natural plant fibers such as bamboo, sugarcane bagasse, and wheat straw.
Molded pulp is widely used for both protective and consumer packaging due to its excellent shock absorption, lightweight structure, and versatility in design. Environmentally, molded pulp is highly regarded as it is biodegradable, compostable, and easily recyclable—offering a strong alternative to single-use plastics and contributing to a circular economy.
Manufacturing of molded pulp packaging
The manufacturing process involves several stages—each critical in shaping the performance, aesthetics, and functionality of the final product:
1. Raw Material Preparation
The process begins with the selection of raw materials, typically consisting of post-consumer recycled paper, corrugated cardboard scraps, or renewable agricultural fibers. These materials are sorted, cleaned, and blended with water to create a slurry—an aqueous mixture known as pulp. The quality and composition of the raw materials significantly influence the final product’s color, texture, and mechanical properties.
2. Pulping Process
Once the materials are added to water, they are mechanically agitated and broken down in a pulping machine. The goal is to produce a uniform slurry with the appropriate fiber length and consistency. No harsh chemicals are required, which makes the process environmentally friendly and safer than many plastic-based manufacturing methods.
3. Molding/Forming
The slurry is transferred to a molding station, where the pulp is shaped into specific forms. This is done using a mesh-covered mold that is submerged into the slurry tank. A vacuum system draws the pulp onto the mold surface, and water is drained away, leaving a wet fiber layer that takes the shape of the mold.
There are several molding techniques employed, each suited for different product requirements:
- Wet Press Molding: The mold is dipped into the pulp slurry, and a vacuum is applied to draw the fibers onto the mold’s surface, forming the desired shape. While still wet, the molded part is then transferred to a heated press where excess water is squeezed out, and the pulp is further compacted and dried.
- Dry Press Molding: In this technique, a thicker pulp slurry is used, and the molding process involves less water removal during the initial forming stage. The drying and pressing occur simultaneously in a heated die. This method is often used for thicker, more rigid packaging.

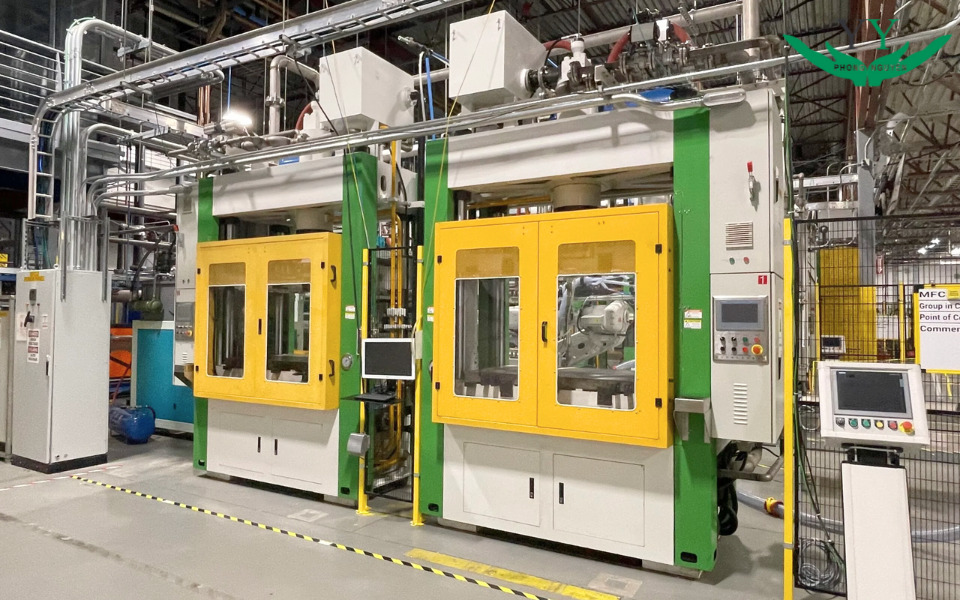

- Thermoforming: While less common for traditional molded pulp, some variations involve heating a pre-formed pulp sheet and then shaping it using vacuum or pressure over a mold.
4. Drying
After forming, the wet molded parts are carefully removed from the molds and transferred to drying units. Drying is achieved either through heated air, hot pressing, or infrared systems. This stage is essential to eliminate excess moisture, prevent deformation, and prepare the products for finishing.
5. Finishing and Trimming
To improve surface smoothness and dimensional precision, the dried parts are often hot-pressed between heated metal plates. This not only enhances aesthetics but also increases strength and compressibility. At this stage, additional features such as debossed logos or artwork can be incorporated.
Once formed and dried, the packaging items undergo trimming and die-cutting to remove excess material, create openings, or form windows. High-precision tools ensure that each piece matches the design specifications accurately.
6. Quality Control
Throughout the entire manufacturing process, rigorous quality control measures are implemented. This includes monitoring pulp consistency, mold accuracy, drying temperatures, and the final dimensions and strength of the packaging. Defective pieces are identified and removed to ensure that only high-quality molded pulp packaging reaches the customer.
Types of molded pulp
Molded pulp, also known as molded fiber, is used widely for protective and retail packaging due to its durability, cushioning properties, and eco-friendliness. Based on manufacturing methods and end-use requirements, molded pulp can be categorized into four main types:
1. Thick-Walled Molded Pulp
Thick-walled molded pulp is the most basic type, made using a single mold and typically featuring walls between 3/16 to 3/8 inches thick. It is rough in texture and has relatively low dimensional precision.
Applications:
- Heavy-duty industrial packaging
- Automotive parts trays
- Edge and corner protectors
- Protective end caps
2. Transfer Molded Pulp
This type uses a forming mold and a transfer mold to create more refined, lighter packaging with wall thicknesses between 1/8 to 3/16 inches. Surfaces are smoother compared to thick-walled pulp, and the overall form is more precise.
Applications:
- Egg cartons
- Fruit trays
- Lightweight consumer goods packaging
3. Thermoformed or Thin-Walled Molded Pulp
Thermoformed pulp is manufactured using heated molds to create thin-walled, high-precision parts with walls between 3/32 to 5/32 inches. It offers the smoothest surface finish of all pulp types and is increasingly used in premium consumer packaging.
Applications:
- Electronics packaging (e.g., smartphones)
- Cosmetics and beauty product trays
- Luxury retail packaging
- Pulp clamshells
4. Processed Molded Pulp
Processed molded pulp refers to any molded pulp product that undergoes secondary treatment after molding. This may include coating, painting, cutting, die-stamping, or adding additives for water resistance.
Applications:
- Custom retail packaging
- Specialty items requiring unique performance
- Decorative or display packaging

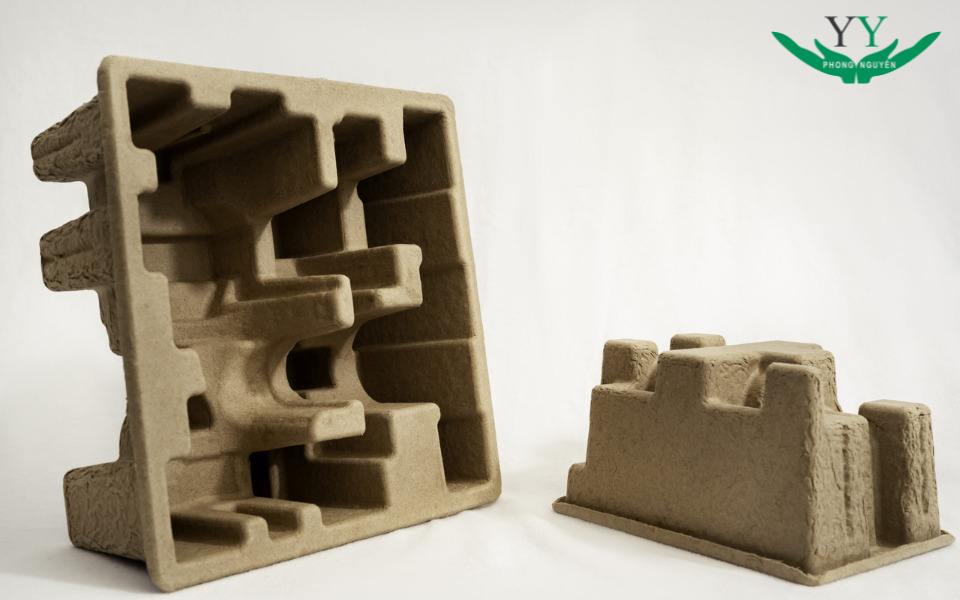

Pros and cons of molded pulp
Derived from recycled paper or natural fibers such as bamboo, sugarcane bagasse, or wheat straw, molded pulp is reshaping how businesses think about packaging. While its environmental benefits are clear, it’s important to consider both the advantages and limitations of this packaging material.
Pros of Molded Pulp Packaging
- Environmentally Friendly: Molded pulp is biodegradable, compostable, and recyclable. It decomposes naturally without harming ecosystems, making it a top choice for companies aiming to reduce their carbon footprint and move away from plastic packaging.
- Contribution to circular economy: One of the most significant benefits is that molded pulp utilizes waste materials like post-consumer paper and agricultural fibers. This reduces reliance on virgin resources and supports a circular economy.
- Cost-Effective Production: The raw materials used are typically low-cost and widely available. The production process, though requiring specialized equipment, is energy-efficient and avoids expensive chemical treatments found in some plastic manufacturing.
- Customizable Design: Molded pulp can be shaped into a variety of forms with custom contours, making it ideal for packaging fragile items like electronics, glassware, or cosmetics. It supports embossing and debossing for branding and can be colored or textured to meet aesthetic requirements.
- Excellent Protection: Thanks to its shock-absorbing and cushioning properties, molded pulp provides reliable protection during transportation and handling. It’s often used for end caps, trays, and clamshell packaging that hold products securely in place.
- Regulatory & Brand Compliance: With growing consumer awareness and regulations around plastic usage, molded pulp aligns well with sustainability goals and helps brands boost their eco-credentials.
Read more: TOP 8 Eco-friendly Packaging Solutions
Cons of Molded Pulp Packaging
- Limited Water Resistance: Standard molded pulp is not waterproof. Exposure to moisture can weaken the structure. Although coatings or additives can be applied for water resistance, they may reduce recyclability or increase cost.
- Surface Finish Limitations: Compared to glossy plastic or printed cardboard, molded pulp usually has a more rugged and natural appearance. While this is desirable for some brands, others may find it limiting when aiming for a luxury or premium feel.
- Slower Production Time: The drying process in molded pulp production can be time-consuming, especially when compared to injection-molded plastic. This may impact scalability for high-volume production runs unless highly automated systems are in place.
- Durability Concerns: In certain applications, especially where packaging is reused or exposed to rough handling over time, molded pulp may not be as durable as plastic or metal packaging.
- Limited Color Options: Unlike plastic or printed cardboard, molded pulp has limited color vibrancy. Although dyes can be added, achieving consistent and vivid color tones is more challenging, which may affect brand identity for some businesses.
Conclusion
Molded pulp stands out as a sustainable, versatile, and increasingly popular packaging solution in today’s eco-conscious world. From its manufacturing process to the different types tailored for various applications, molded pulp provides both functional protection and environmental benefits.
